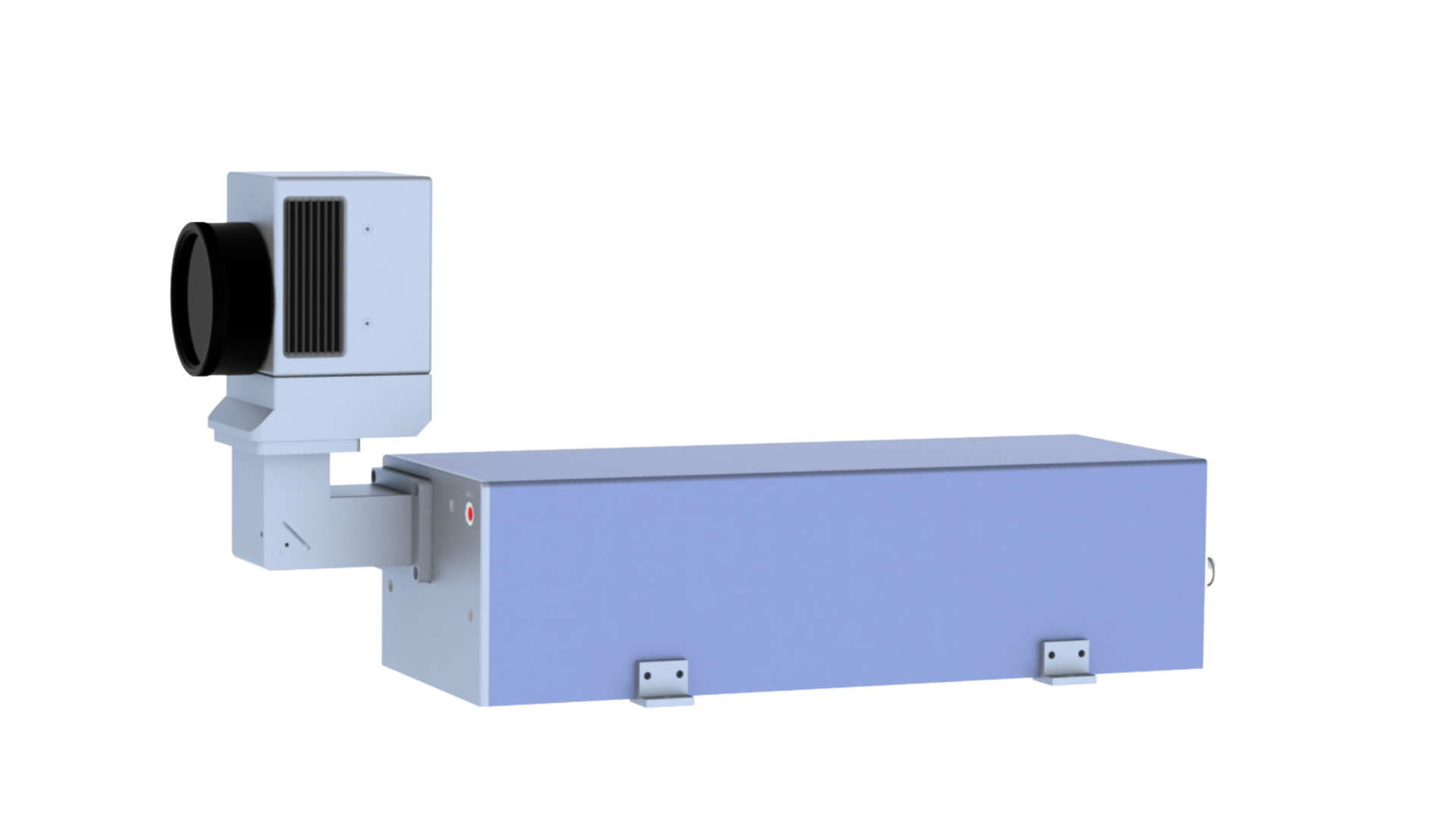

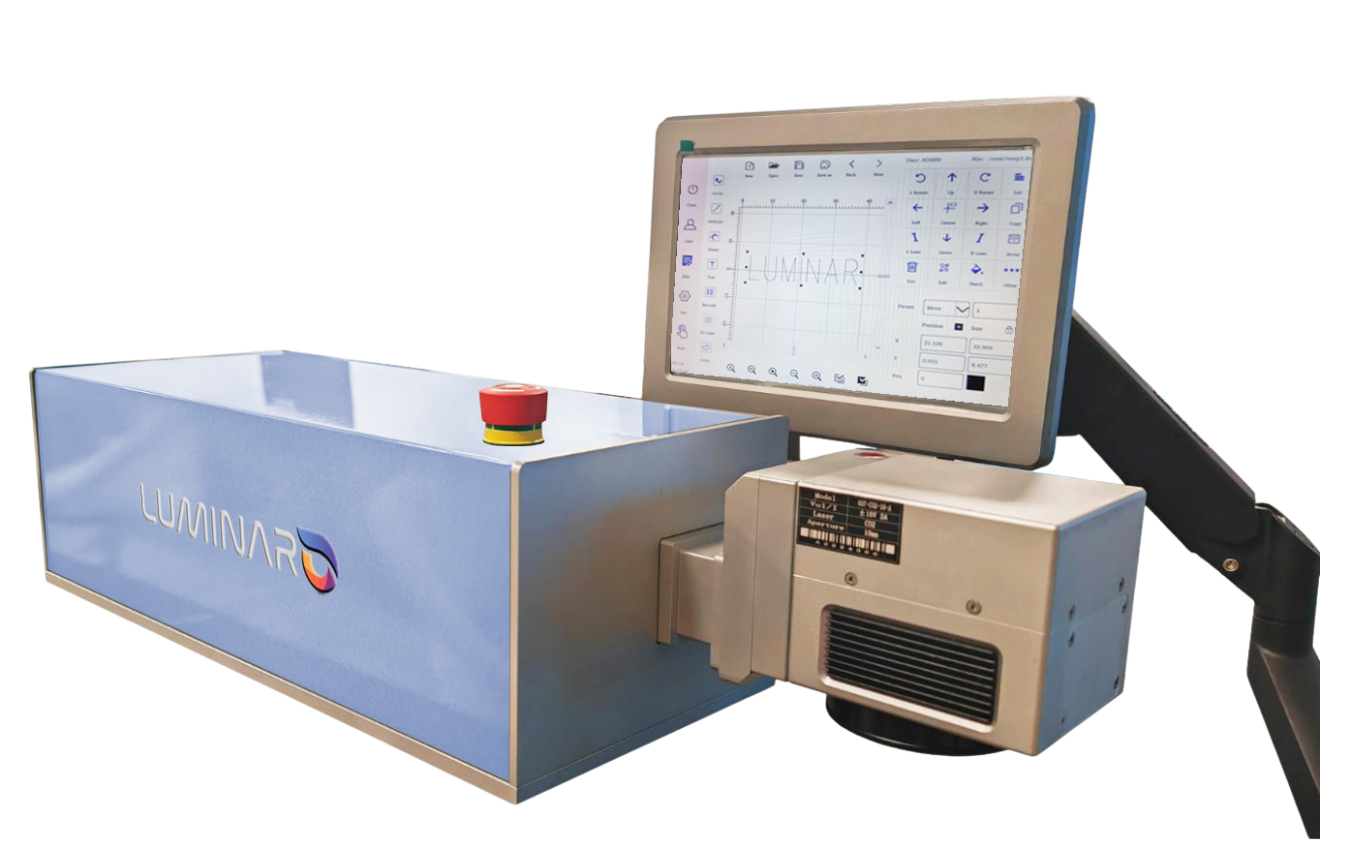

Luminar UV Laser Marking Systems are designed for ultra-fine marking and micro-processing, offering high precision with minimal thermal impact. UV lasers ensure clean, high-contrast results without damaging the substrate—making them the preferred choice for high-precision applications across electronics, medical, and consumer product industries.
Luminar UV Laser Marking Systems are engineered for high-speed, high-precision applications where clarity, cleanliness, and repeatability are critical. These systems use a short-wavelength ultraviolet beam to achieve high-precision marking with minimal heat generation, preventing damage or deformation to even the most sensitive materials such as plastics, glass, ceramics, silicon, and medical polymers.
Designed for seamless integration into production lines, these machines feature high-speed galvo scanning technology, precision motion systems, and conveyor systems, vision-guided alignment, and barcode/QR code verification.
| Specifications | |
|---|---|
|
Average Output Power(W) |
5W |10W |
|
Wavelength(nm) |
355nm |
|
Typical Beam Quality(m²) |
Beam Quality, M < 1.1 |
|
Pulse Repetition Rate |
10 – 200 kHz |
|
Marking speed(m/s) |
7,000 – 10,000 mm/s |
|
Marking Field Size(mm) |
100×100|
150×150|
200×200 |
|
Electrical Supply |
230 VAC (50Hz) or 115VAC (60Hz) |
|
Cooling Method |
Water Cooled |
|
Laser Class |
Class 4 requires proper safety measures such as protective housings, interlocks, and laser safety eyewear. |
|
Standard Interface |
RS-232/ TCP IP |
|
Operating System |
Linux OS |
|
Software |
FlyingFox |
